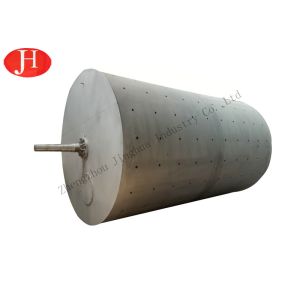

Jinghua New Condition Vacuum Filter Glucose Dehydration Making
Machine
Product Description
Zhengzhou Jinghua Industry Vacuum filter combines the latest
technology and years experience into a whole, which is widely used
for starch milk dewatering in potato starch,wheat starch,cassava
starch and sweet potato sago starch project.
Main Features of Vacuum Filter
1. Combining the latest technology and years experience into a
whole.
2. Parts contacting with materialare fully stainless steel ,
compact structure and nice design.
3. Speed of rotating drum can be adjusted.
4. Material unloaded through blade, which is made of high rigid
alloy and can be adjusted.
5. Stirrer's running frequency can be adjusted.
6. Continuous regulate fluid-level control .
7. Low energy consumption, small area , friendly operation and
stable running.
8. Widely used to dewater starch slurry in starch processing.
Main Technical Parameter
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |
FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license
and we have done export business over 20 years professionally.
Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of
starch processing line , such as : cassava starch line , cassava
flour line , potato starch line , sweet potato line , wheat starch
,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town ,
Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate
by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design
the whole process line?
A : Yes, our experienced engineers and technical employees can help
you to arrange the layout and installation of whole process line
based on your real situation;
Q6: If we have samples of new products, can you help us to analysis
and design the machine?
A: Yes, Our technical department can help you to analysis, design
and test the new products you offered.
