Automatic Operation Centrifugal Sieve Starch Slurry Washing And
Dehydration Machine
Product Description
Centrifugal Sieve is used to separate the fine fiber from the
starch slurry, which is widely used in the processing of potato,
cassava, sweet potato, wheat, rice, sago and other grain starch
extraction.
Main Features of Centrifugal Sieve
1. Centrifugal sieve is a high-tech product and patent technology
product of jinghua industry.
2. Big capacity,low power consumption,stable operation,high starch
extraction and easy installation.
3. Key components introduced abroad, lone service life, low
maintenance cost.
4. All parts contact with material are stainless steel, no material
contamination.
Working Principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of
the sieve basket. Then, under the effect of centrifugal force and
gravity, the slurry goes a complex curve movement toward the bigger
size direction, even rolling. In the process, the bigger impurities
arrive the outer edge of the sieve basket, collecting in the slag
collection chamber, whist the starch particle which size is smaller
than the mesh fall into the starch powder collection chamber.
Main Technical Parameters
| Model | Basket diameter(mm) | Main shaft speed(r/min) | Working model | Power (Kw) | Dimension (mm) | Weight (t) |
| DLS85 | 850 | 1050 | continuous | 18.5/22/30 | 1200x2111x1763 | 1.5 |
| DLS100 | 1000 | 1050 | continuous | 22/30/37 | 1440x2260x1983 | 1.8 |
| DLS120 | 1200 | 960 | continuous | 30/37/45 | 1640x2490x2222 | 2.2 |

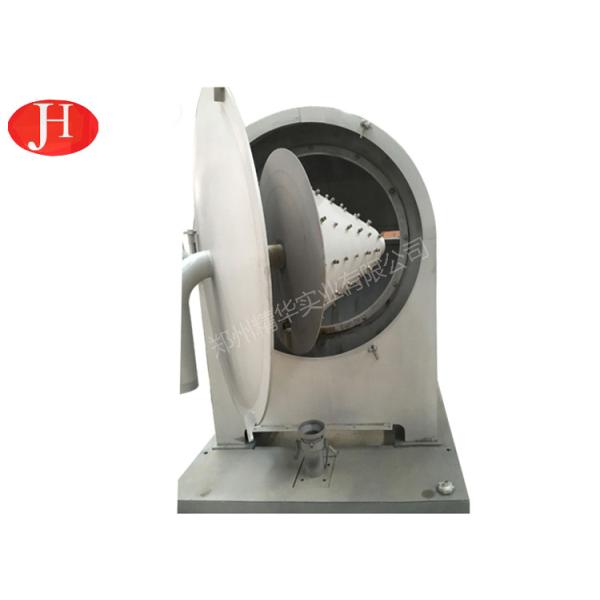

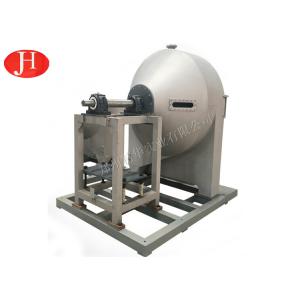

Product Show
Packing & Shipping
Packing : Customize the wooden case according to the size of the
product,Each container can hold 4-6 pieces of products.
Delivery :14days after receiving pre-payment (on time according to
contract strictly).
